RO-7 EMAUX Water Level Regulator

1.- WATER LEVEL REGULATOR:

Water level regulator allows fresh water to refill the pool when the pool water level is low due to evaporation, water loses for the bathers, etc.

A float in the water level regulator isconnected to the fresh water source through a valve. When

the pool water level is low, the float is at a low position and opens the valve letting the fresh

water come in. Once the float position reaches to the maximum water level, it closes the valve

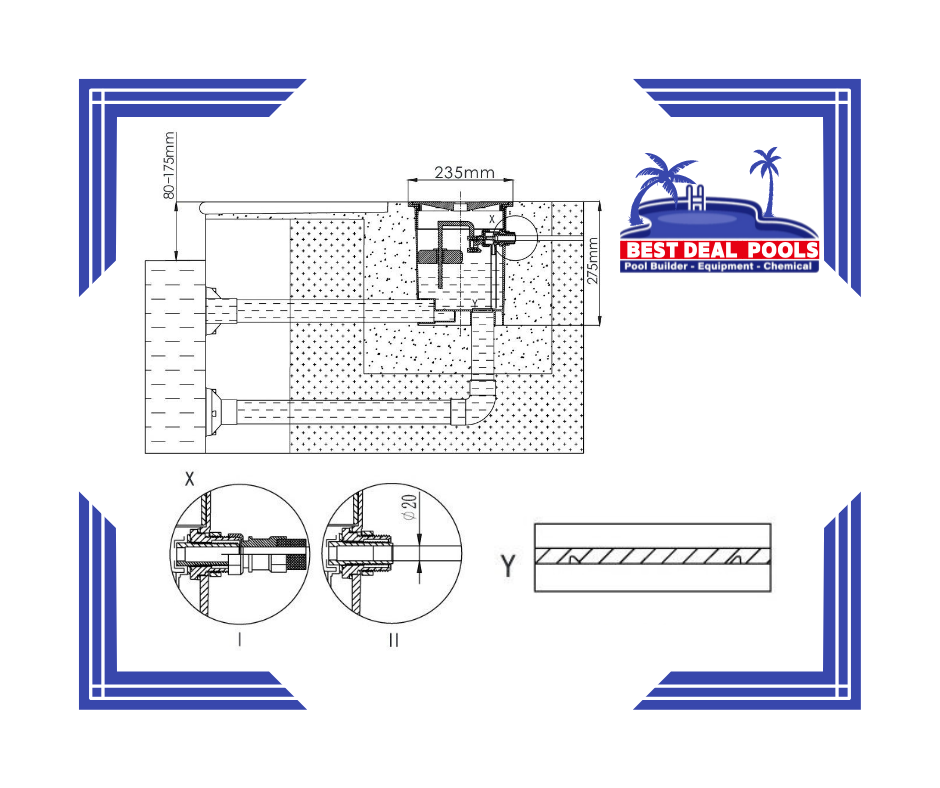

2.- INSTALLATION:

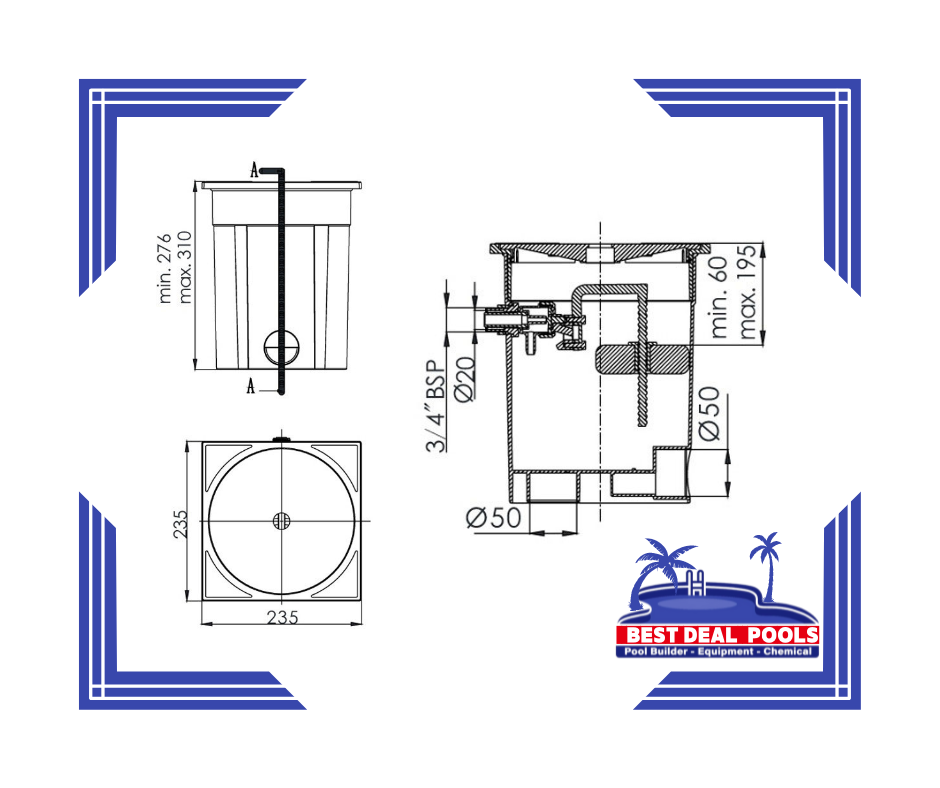

Water level regulator is installed near to the pool and connected to the pool through a pipe ø50 mm (Metric model) or 1 ½"

(Imperial model).

There are two different connections options: bottom connection or lateral connections.

The fresh water pipes connection is ø20 mm or ¾" BSP.
