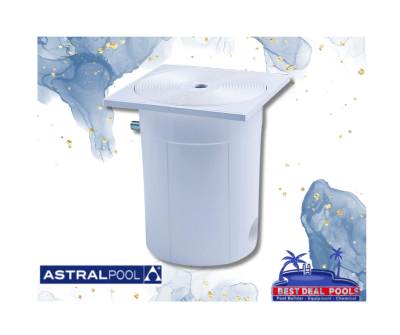

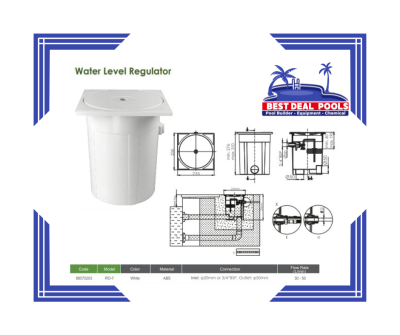

WATER LEVEL REGULATOR:
Made of ABS. May be connected from the bottom or side, as required. Semi-die cut outlets to the pool so that the most suitable connection can be made. Adjustable lid height and level.
Cover color can be changed using the 15L skimmers covers :
00249-0700CL090, 00249-0700CL129, 00249-0700CL144

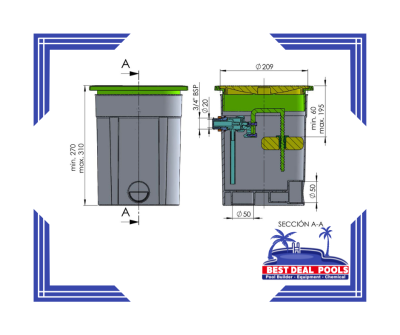

Water level regulator is installed near to the pool and connected to the pool through a pipe ø50 mm (Metric model) or 1 ½"
(Imperial model).
There are two different connections options: bottom connection or lateral connections.
The fresh water pipes connection is ø20 mm or ¾" BSP.
Maximum working pressure is 2.5 bar.
